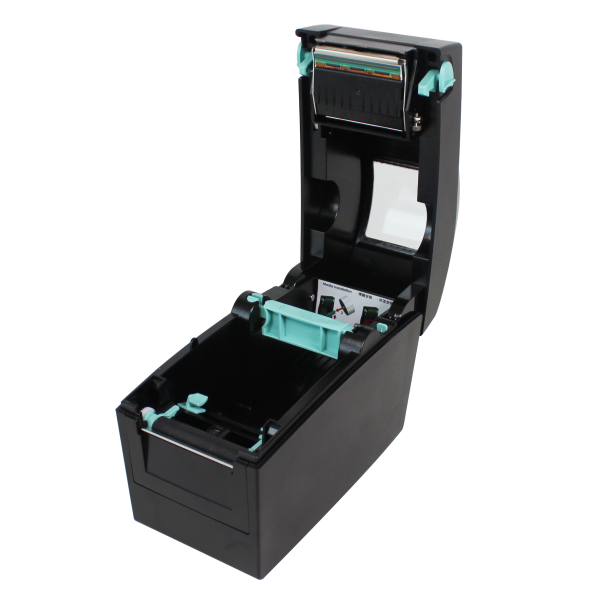

DT200 / DT230

Small in Size. Powerful in Function!

The DT200 series is an ingenious design that brings several functions into one platform. It supports 203dpi or 300dpi printing resolution. A full line of optional accessories is available and the DT200L supports linerless media printing. All your needs can be satisfied with this series.

 3 Years Warranty

  • Supports 203 dpi / 300 dpi printing resolution
  • Small footprint with a wall-mountable design for space optimization
  • The innovative easy-to-use auto-calibration button facilitates media
    detection and positioning
  • Adjustable TPH print line to optimize printability
  • Multiple connection interfaces for multiple applications
  • Optional wireless connectivity: Bluetooth or Wi-Fi module
  • Supports various types of media, including linerless media with the
    DT200L Linerless models.
  • External media stand available to satisfy large printing projects
    (not compatible with Linerless models)
Specs
Print Method
Direct Thermal
Resolution
203 dpi (8 dots/mm) / 300 dpi (12 dots/mm)
Print Speed
7 IPS (178 mm/s) / 5 IPS (127 mm/s)
Print Width
2.12” (54 mm) / 2.24” (57 mm)
Print Length
Min. 0.16” (4 mm)** ;Max. 68” (1727 mm) / Min. 0.16” (4 mm)** ;Max. 30“(762 mm)
Processor
32 Bit RISC CPU
Memory
Flash: 128 MB (60 MB for user storage) SDRAM: 32 MB
Interfaces
• USB 2.0 • Serial port: RS-232 (DB-9) • Ethernet 10/100 Mbps
Ribbon
N/A
Control Panel
• Two LEDs : Ready, Status • Power on / off button • Calibration button • Control key : FEED
